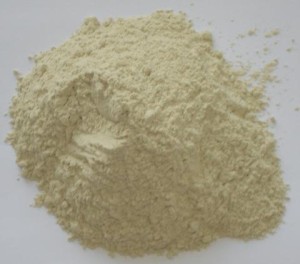

Bentonite Powder – Drilling Grade

Bentonite is used as lubricator / thickener for drilling fluids. Drilling mud is crucial in the extraction of drill cutting during the drilling process. Bentonite, when mixed with water, forms a fluid (or slurry) that is pumped through the drill stem and out through the drill bit. The drilling mud or gel also serves to cool and lubricate the drill bit as well as seal the drill hole against seepage and to prevent wall cave-ins. Our Drilling Grade Bentonite Powder service a verity of function lubricating drill bits, stabilizing well bores removing rock cutting and improving drilling efficiency. Drilling mud or drilling gel is a major component in the well drilling process.

Description

We can provide the Bentonite as per API 13 A section 9 & 11. Specifications are attached below-

API 13 A SECTION – 9

Sr. No. Parameters API 13 A SECTION-9
1 Viscometer dial reading at 600 rpm 30 min
2 YP / PV Ratio 3 max
3 API Fluid Loss 15 ml max
4 Residue > 75 μm 4% maAPI 13 A SECTION – 9x



API 13 A SECTION – 11(OCMA)

Sr. No. Parameters API 13 A SECTION-11 (OCMA)
1 Viscometer dial reading at 600
rpm
30 min
2 YP / PV Ratio 6 max
3 API Fluid Loss 16 ml max
4 Residue > 75 μm 2.5% max
5 Moisture Content 13% max
